Description
1. 9629 Alien H3 Wet Inlay Main Characteristics
Product: 9629
Chip: H3

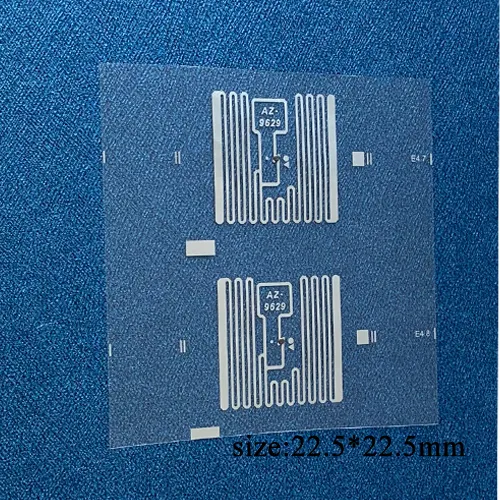

Antenna Dimension: 22.5×22.5mm
Wet Inlay Dimension: 25.5×25.5mm
Reading Distance: 3.5m
2. 9629 Alien H3 Wet Inlay Advantage
1. Small form-factor, gerneral-purpose RFID inlay
2. Well-suited for item level tagging

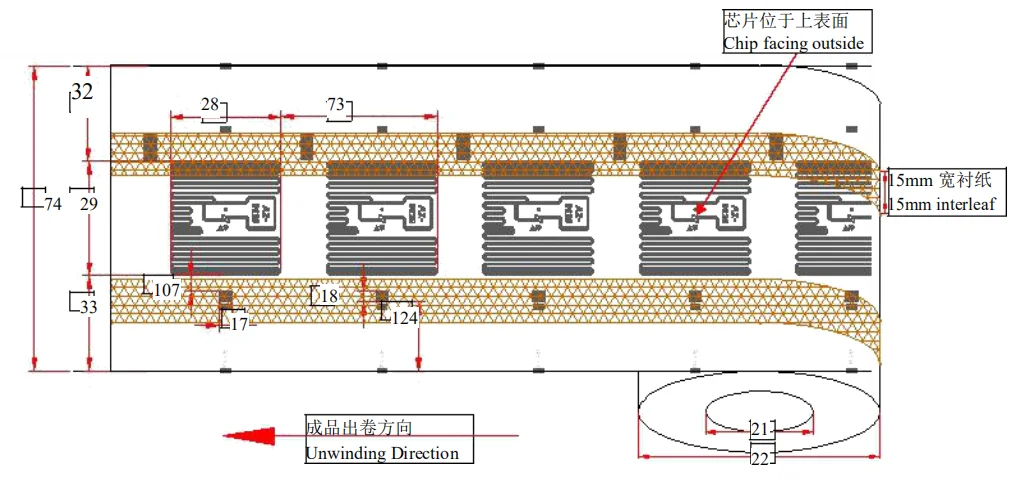

3. Dimensions & Spec. could be customization:
4. Size tolerance
| The distance from antenna to PET edge | ±1.5mm |
| Width of release paper | ±1.0mm |
| Pitch of Glue transponder, distance of glue transponder, finished product inner diameter | ±0.5mm |
| Size of Glue transponder, Radius of glue transponder, the size of the antenna | ±0.2mm |
5. Electrical Characteristics
| Item | Description | Remarks | |
| Manufaturer/chip | HIGGS3 | 100um thickness | |
| Basic material optional | Paper/PET/PP
AD: AW3209, AW2150, AW1416 UPM: 04RP5X01H0 Or Customization |
||
| Antenna | Aluminum etching Al(9μm)+PET(50μm) | ||
| Protocol | ISO/IEC 18000-6C EPC Class1 Gen2 |
||
| IC Store area | EPC | 128Bits | Read and write |
| TID | 48Bits | Read only | |
| Unique TID | 48Bits | Read only | |
| Passwordarea | 32bits access 32bits kill |
Read and write | |
| User area | 512Bits | Read and write | |
| Frequency | 860~960MHz | ||
| Reading distance | 3.5-4.5m | IMPINJ R2000 Fixed Reader (1W+30dbm) | |
| 3.5m | IMPINJ R2000 Module handsets (1W+30dbm) |
||
| Operating Mode | Passive | ||
| IC life | 100,000 Programming cycles, 10years data retention |
||
| ESD Voltage Immunity | At most 2000v | Human being mode(HBM) | |
6. Requirement of environment
A operating tempreture/humidity:-40~70ºC/ 20%~90% RH
B Storage tempreture/humidity:-25~50ºC / 20%~90% RH
C Shelf Life:From the date of manufacture, 1 year in vacuumed bag at +23°C±5°C / 50%±10%RH)
Art craft

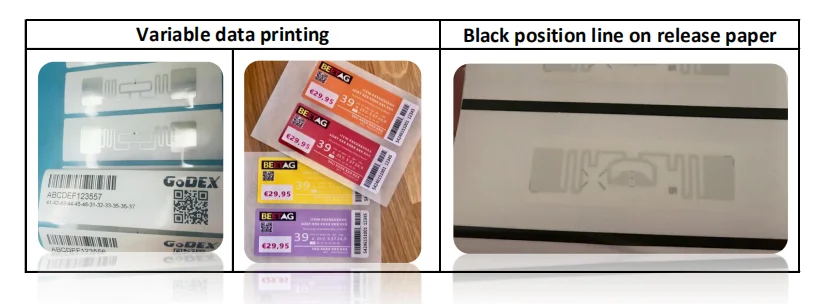

Variable Data processes:
a: Color Pre-printed
b: Barocde Pre-printed
c: QR Pre-printed
d: RFID programming
e: Individual package sort by SKU
f: Black position line printing etc
