High Performance 860~960MHz Supply Chain D7 UCODE 7 UHF RFID Inlay

UCODE 7 IC is the leading-edge EPC Gen2 RFID chip that offers … UCODE 7 enables long read distance and fast inventory of dense RFID tagUHF RFID inlay are composed of an IC (Integrated Circuit, Chip) and a Dipole antenna.

Category:

Description

 Description
Inlay Feature
  • Special design to library solutions
  • A worldwide performance tag
Chip UHF: UCODE 7
Frequency 860-960MHz (EPC Gen2)
Protocol UHF:ISO 18000-6C

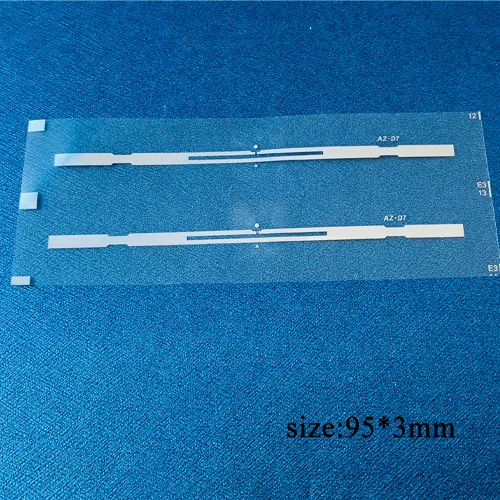

Size 95*3mm or customized.
EPC Memory 128 bit
Material Inlay: Aluminum + PET, or cutomized

Label: Paper(Coated paper,Direct thermal paper, Synthetic paper, Fragile paper), PET or customized
Write Endurance ≥100000 cycles
Read Range UHF: 4m;(depends on the reader and antenna)
Aplication Library Solution, Books Tracking
Optional Craft
Craft Barcode or QR Code printing,Laser engrave,EPC encoding,etc.

IC Features – Available option other chips

Chip User Memory IC Features
H3 800-Bits of Nonvolatile Memory
• 96-EPC Bits, extensible to 480 Bits
• 512 User Bits
• 64 Bit Unique TID
• 32 Bit Access and 32 bit Kill Passwords
  • Classic UHF chip
  • Variour inlay options
  • High price
  • Widely used in many projects
Monza 4QT • 512 bits of user memory

• 128 bits of EPC memory, and 48-bit serialized TID
  • Omni-directional
  • Highest price in M4 series
  • Large User & EPC memory
Monza R6 • Up to 96 bits of EPC memory
• 96 bits of Serialized TID with 48-bit serial number
  • No user memory
  • High sensitivity (even better than U7)
Monza R6-P

• Up to 128-bits of EPC memory
• 96 bits of Serialized TID with 48-bit serial number
• Up to 64 bits of user memory
  • Similar performance with R6
  • With user memory
UCODE 7 • Up to 128-bit EPC

• 96-bit Unique Tag Identifier (TID) factory locked,

including 48-bit unique serial number
  • Large projects first option
  • High sensitivity
UCODE 8 • Pre-serialization for 96-bit EPC
  • Newest & Cheapest chip
  • More sensitivity than all other chips
  • Longest reading range
